Johnsons garage doors and gates

ATA SYNCRO ATS-3(motor only) no rail included

ATA SYNCRO ATS-3(motor only) no rail included

Regular price $799.00 AUD
Regular price Sale price $799.00 AUD
Sale Sold out
Shipping calculated at checkout.

Simply smart! This connected opener combines premium features with quick and easy installation. No external hub required. Syncro is smart out of the box. Ideal for heavy custom doors up to 236kg. Includes two PTX-6 Transmitters and one WTX-6 Wall Button.

  • Please note: C-rail is not included
  • Syncro takes the convenience of automation a step further. You can monitor , control and schedule access to your garage door anytime, anywhere, with your smart phone. With fast opening speed, Syncro makes getting in and out of the garage a breeze. This top of the range model includes enhanced safety features and is backed by a 7-year warranty
  • Syncro boasts a supercharde motor with stop/soft start functionality, making your garage door opening exceptionally fast yet quiet
  • For your peace of mind, Syncro features an auto-reverse function which forces the door to reverse if it encounters an obstacle. Syncro will also detect if an intruder is attempting to force the door up and will resist entry. Patented remote control technology ensures secure and reliable home access
  • Smart technology can save you time and effort. No need to hide or share keys with cleaners, guests or the delivery person, you can control and schedule access to your garage remotely from your smart phone. Syncro will even tell you if you if you left the garage door open, sending you a notification when the door is operated, so you know exactly when your children got home
  • Ideal for most sectional and tilt doors, including doors with architectural cladding up to 5kg
  • 7 Year/20,000 Cycle warranty giving peace of mind

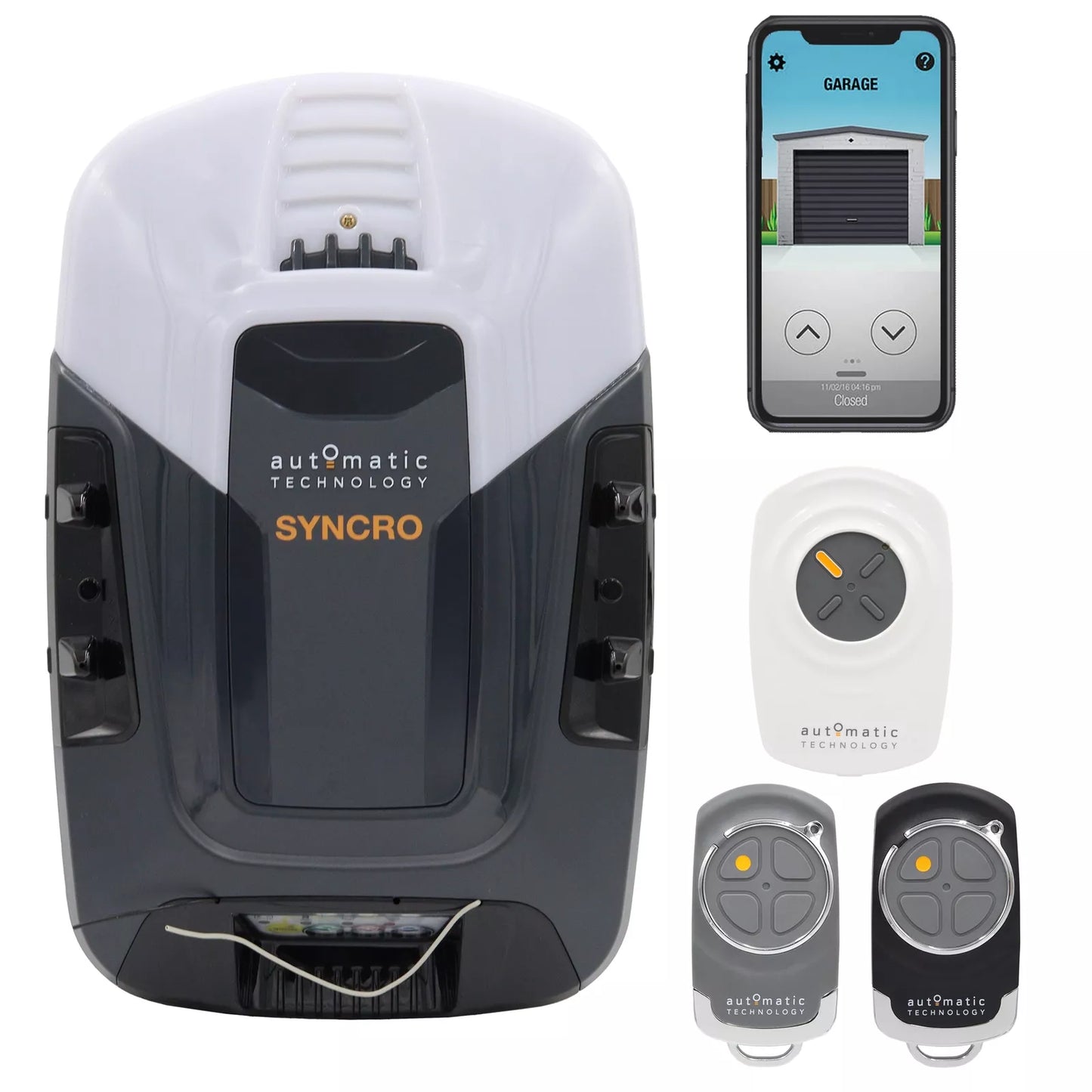

  • Kit includes; 1 x ATS-3 SYNCRO Powerhead, 2 x PTX-6v1 Transmitters (1 x Black, 1 x Grey), 1 x WTX-6v1 Wall Button Transmitter, 1 x Mounting Hardware & 1 x Instruction Manual
Technical Specifications
Rated Voltage Range 230V - 240V A.C.
Rated Frequency 50Hz / 60Hz
Rated Power Input 165W
Max. Door Opening Area 18m2
Max. Door Weight 236kg (Door must be well balanced and able to be operated by hand, as per warranty conditions and AS/NZS 4505:2012)
Min. Headroom 57mm
Rated Operating Time 4mins
Rated Temp +5°C to +40°C
Short Term Peak Force 1100N
Rated Load 400N
Nominal Force 200N (20kg)
Receiver Type Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
Receiver Code Storage Capacity 64 x 4-button transmitters
Transmitter Battery CR2032 (3V)
Main Light LED (Light Emitting Diodes)
Network Connectivity Network ready, Smart Hub already installed
Shipping Weight 9.5kg
Shipping Width 330mm
Shipping Height 250mm
Shipping Length 400mm
