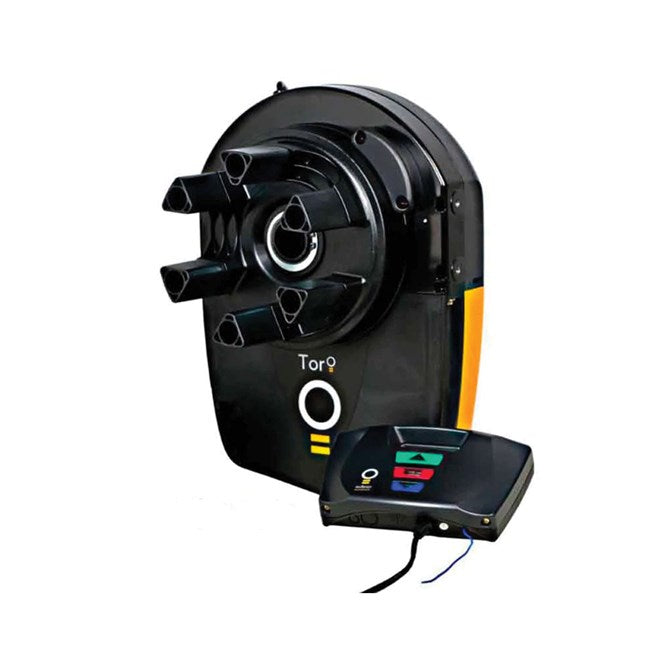

ATA TORO GDO-10V3L2
ATA TORO GDO-10V3L2
The Toro® offers sophisticated commercial roller door opening technology and superior pulling power. With built-in Battery Back-up and a wall-mounted control panel you can program a variety of operating modes for your security and safety. A marriage of immense power and sophisticated logic controls, the Toro® can cater for roll-up doors up to 28m2 and high duty cycles. The logic control system, with LCD screen, can manage up to 511 TrioCode™ Garage Door Remotes, and offers time clock controlled access programs, adjustable speed and obstruction settings. A full complement of controlling inputs and outputs are standard, including compatibility with up to three Wireless Safety Beams systems simultaneously. Rounding this out is Soft Start/Soft Stop, Door Profiling, Intelligent Safety System and variable Auto Close settings. Includes two PTX-5v2 Transmitters
- Commercial Rolling Door Opener operates doors up to 28m2
- Includes Battery Back Up as well as a Logic Console
- The logic control system, with LCD screen, can manage up to 511 TrioCode™ Garage Door Remotes, and offers adjustable speed and obstruction settings.
- Rounding this out is Soft Start/Soft Stop, Door Profiling, Intelligent Safety System and variable Auto Close settings.
- 2 Year Industrial warranty giving peace of mind
- Kit includes; 1 x GDO-10v3 Powerhead, 2 x PTX-5v2 Transmitters, 1 x L1 Logic Console (LCD wall control), 1 x Mounting Hardware & 1 x Instruction Manual
Technical Specifications | |
---|---|
Input Voltage | 230-240V a.c. 1-phase |
Transformer Rating | 150VA |
Standby Power | 2.8W |
Motor Type | 24V d.c. Permanent Magnet |
Motor Power | 150W |
Peak Driving Force | 1000N |
Rated Duty Cycle | 1 |
Rated Door Area | 28m2 |
Typical Travel Speed (door and setting dependent) | Variable via control panel |
Receiver/Transmitter Frequency | Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz) |
Coding System | Code hopping (non-linear encryption algorithm) |
Code Combinations | 3.4x10^38 code combinations |
Transmitter Type | TrioCode 128 |
Transmitter Capacity (x4-button registers) | 511 |
Courtesy Light | Output available |
Safety Beam Compatibility | 3x Wireless/2-wire safety beams |
LCD Screen | Yes |
Shipping Weight | 16kg |
Shipping Width | 405mm |
Shipping Height | 425mm |
Shipping Length | 245mm |
