Johnsons garage doors and gates

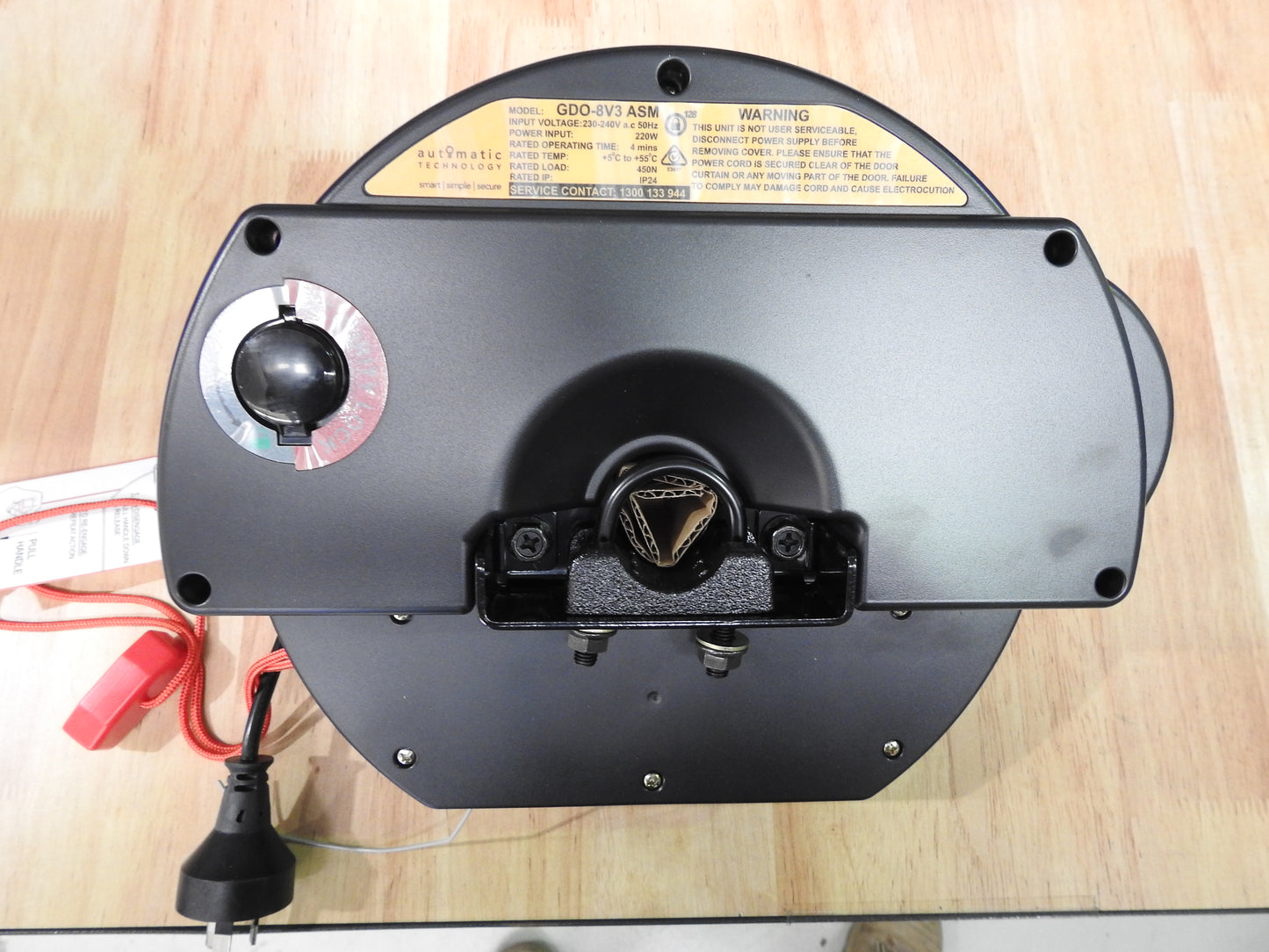

ATA Shed Master®GDO8 v3 Roller door motor (weather resistant)

ATA Shed Master®GDO8 v3 Roller door motor (weather resistant)

Regular price $550.00 AUD
Regular price Sale price $550.00 AUD
Sale Sold out
Shipping calculated at checkout.

ATA- Shed Master®GDO8 V3

Max door size:15m²

Max door weight:120Kg

Max peak pulling force:550N

2 x TrioCode™128 remote transmitters

Ideal for applications that are exposed to weather(carports and perimeter doors IP24 Weather resistant housing)

With a tough, IP24 rated weather resistant housing, the Shed Master® is perfect for exposed applications like perimeter doors and open carports. With a keyed lockout for added security and slim fit design, it is ready for harsh and testing environments.

Standard features also include Intelligent Safety System, Door Profiling and Automatic Technology's own TrioCode transmitter system. This opener will tell you when it's due for a service and prevents unauthorised entry with a built-in lockout system.  If you need a solution to last in all weather conditions then this is the opener for your door.

 Safety Beam Compatibility 1 x 3-wire Safety Beam Warranty 2 year/5,000 cycles

TECHNICAL DATA:
DESCRIPTION
  • Input Voltage
230V- 240V AC 50Hz
  • Motor Type
24V DC
  • Standby Power -
2.8W
  • Motor power
100W
  • Max pulling force-
550N
  • Size rated-
15m²
  • Typical travel - Speed
100mm/sec (door dependent)
  • Weather proof rating-
IP24
  • Onboard Receiver Specification-
Receiver/Transmitter Frequency Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz) Coding System Code hopping (Non-linear encryption algorithm) Code Combinations 3.4x1038 code combinations (340,282,366,920,938,463,463,374,607,431,768,211,456 codes) Transmitter Type TrioCode™128 Transmitter Capacity (x 4-button registers)
