Johnsons garage doors and gates

Centsys Vantage 500 swing motor single low voltage

Centsys Vantage 500 swing motor single low voltage

Regular price $1,312.50 AUD
Regular price Sale price $1,312.50 AUD
Sale Sold out
Shipping calculated at checkout.

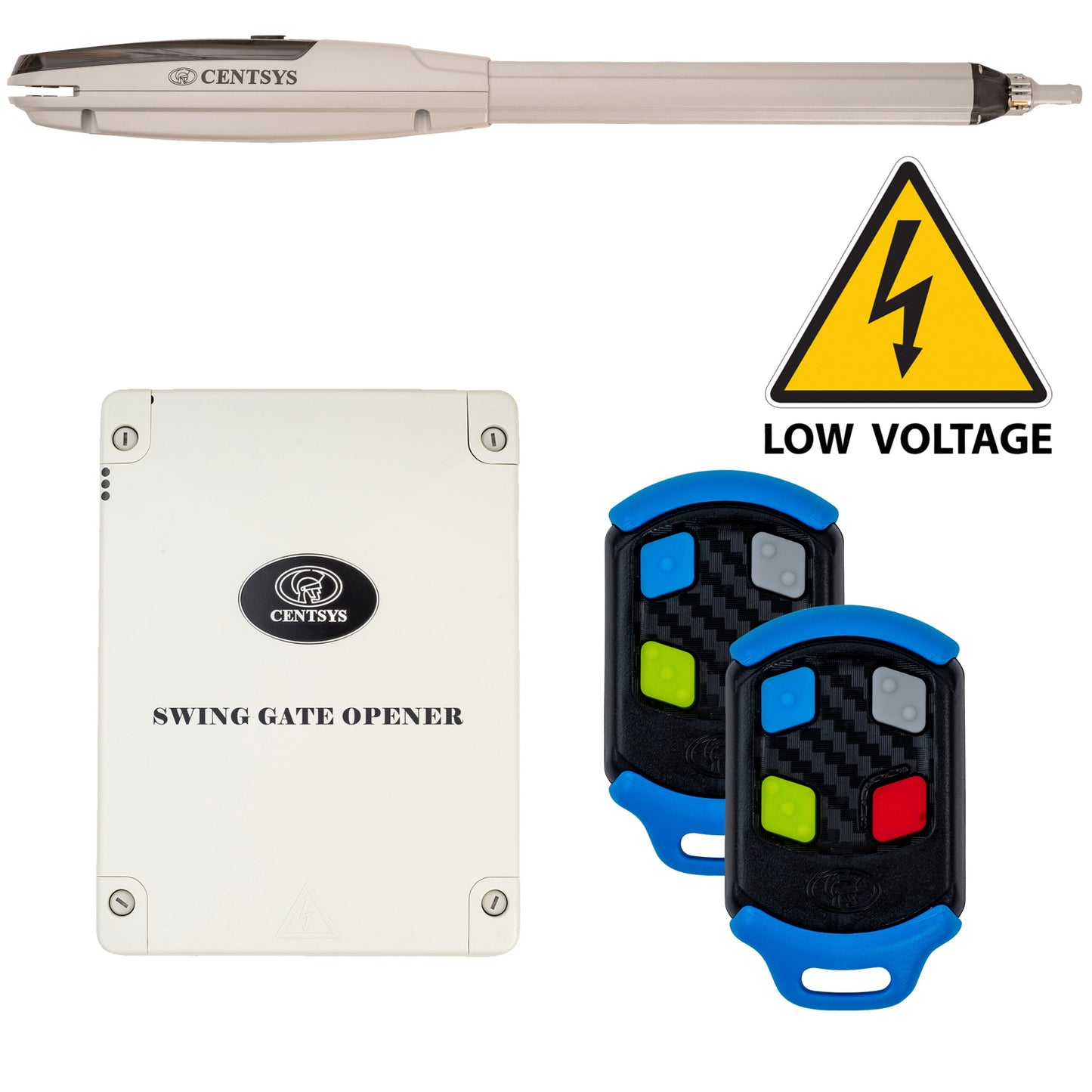

Includes:

  • 1 x Vantage Motor
  • 1 x Vantage low voltage control Board
  • 1x Weather resistant Transformer
  • 1x 30m Cable
  • 2 x Nova Tx Remotes
  • 1 x mounting bracket



Description

Vantage 500 Low Voltage: Motor for automation of single leaf or double leaf gates.

  • The Vantage 500 Low Voltage swing gate motor has a weather resistant transformer separated from the unit, allowing power to be located up to 100 metres away from the motor. Complete with a separate weather proof transformer.
  • The motor comes with integrated battery back up system, lasting up to 2 days with out power, depending on usage
  • The Vantages low voltage design also allows it to have fast opening and closing speeds at 28mm per second.
  • Designed for gates with a maximum width of; 4-mtrs & max weight 400 kg
  • Integrated using the advanced multi-functional control board
  • Smaller compact dimensions of the swing gate motor allows for installations in areas of reduced space
  • Reduction unit manufactured with high quality gears & a rolled worm shaft with Ø 20mm spherical section
  • Attractive in appearance, the Vantage is a sleek & discreet operator that is easy & trouble free to install thanks to the front articulation & the built in mechanical stop, adjustable in the opening phase only
  • Equipped with an manual override unlocking device, which is operated from the top of the operator, making this proceed simple & efficient
  • Compatible with our complete range of accessories, the Vantage is a quality electromechanical solution to access control
