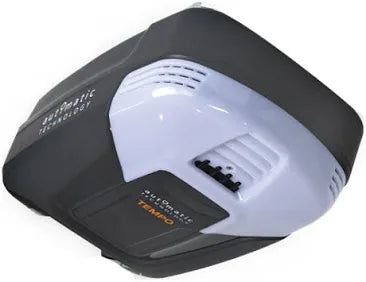

ATA TEMPO ATS-2V3 (motor only) no rail included

ATA TEMPO ATS-2V3 (motor only) no rail included

Regular price $500.00 AUD
Regular price Sale price $500.00 AUD
Sale Sold out
Shipping calculated at checkout.

Your supercharged ?Go-to? opener Tempo? has a faster opening speed than ever before, features a brighter LED light and delivers improved power rating to lift doors up to 200kg?. Includes two PTX-6 Transmitters and one WTX-6 Wall button.

  • Please note: C-rail is not included
  • This motor boasts a range of opening speed options for optimal performance. A faster opening minimises the wait time. if this is important to you, chose Tempo
  • Remote controls and wall button are designed to work every time you press the button. Our patented TioCode 128 encryption avoids interference from wireless devices within your home and prevents code grabbing
  • Tempo features an auto-reverse function making your home's largest moving object - the garage door, safer to operate. This model is compatible with non-contact safety beams to further protect your family, per and possessions
  • Consider Tempo if you are planning to automate a single or double sectional, tilt door, are replacing or upgrading your motor
  • 7 Year/20,000 Cycle warranty giving peace of mind
Technical Specifications
Rated Voltage Range 230V - 240V A.C.
Rated Frequency 50Hz / 60Hz
Rated Power Input 165W
Max. Door Opening Area 18m2
Max. Door Weight 200kg (Door must be well balanced and able to be operated by hand, as per warranty conditions and AS/NZS 4505:2012)
Min. Headroom 57mm
Rated Operating Time 4mins
Rated Temp +5°C to +40°C
Short Term Peak Force 1100N
Rated Load 400N
Nominal Force 200N (20kg)
Receiver Type Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
Receiver Code Storage Capacity 64 x 4-button transmitters
Transmitter Battery CR2032 (3V)
Main Light LED (Light Emitting Diodes)
Network Connectivity Network compatible, (requires optional Smart Phone Control Kit)
Shipping Weight 9.5kg
Shipping Width 330mm
Shipping Height 250mm
Shipping Length 400mm
