Johnsons garage doors and gates

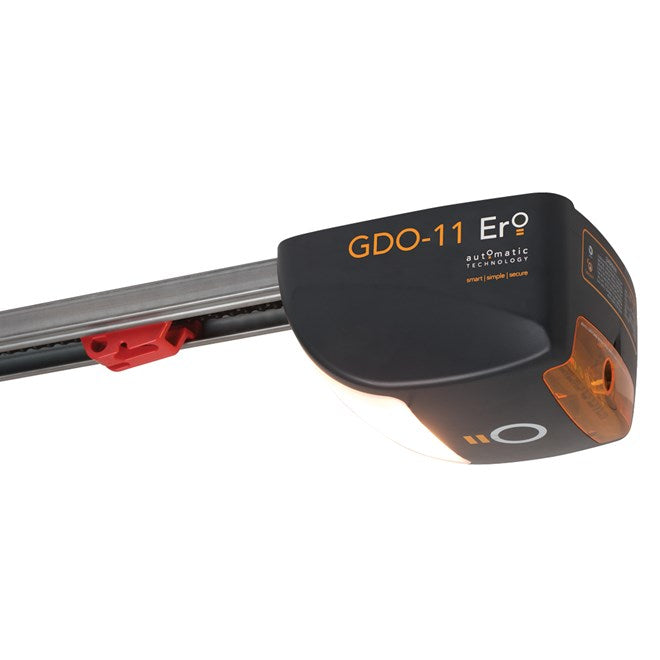

ATA GDO-11 ERO(motor only)no rail included

ATA GDO-11 ERO(motor only)no rail included

Regular price $380.00 AUD
Regular price Sale price $380.00 AUD
Sale Sold out
Shipping calculated at checkout.

The Ero® garage door opener offers great value for money. With important features included, Ero®'s 650N motor will drive most standard residential sectional doors. It's the choice for new homebuyers and for all the right reasons. It comes standard with the important features of TrioCode?, Intelligent Safety System, Door Profiling and Soft Start/Soft Stop. It also includes a Standard Courtesy Light, and conveniently a service indicator to remind you when your door needs servicing. Includes three PTX-5v2 Transmitters

  • Please note: C-rail is not included
  • The TrioCode™128 remote control ensures secure and reliable home access. It transmits on three frequencies to defeat radio interference, and uses a 128-bit encryption protocol (with trillions upon trillions of random codes*) for the ultimate in security
  • This DC motor generates a peak pulling force of 650N and reliably lifts garage doors up to 100kg of weightˆ.
  • A built-in Courtesy Light means your immediate surrounds can be lit to provide security and convenience.
  • The Series 2 Ero® is backed by a 5 year/10,000 cycle warranty*, giving you peace of mind.
  • Kit includes; 1 x GDO-11 Powerhead, 3 x PTX-5v2 Transmitters, 1 x Mounting Hardware & 1 x Instruction Manual
  • 5 year/10,000 cycles warranty giving peace of mind
Technical Specifications
Input Voltage 230-240V a.c. 50Hz
Transformer Rating 72VA
Standby Power 2.2W
Motor Type 24V d.c. Permanent Magnet
Motor Power 100W
Short-term Lifting Force 650N
Maximum Door Weight 100kf%
Rated Door Area 13.5m2
Typical Travel Speed (door dependent) 140mm/sec
Receiver/Transmitter Frequency Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
Coding System TrioCode 128, code hopping
Code Combinations 3.4x10^38 code combinations
Transmitter Capacity (x4-button registers) 8
Courtesy Light 1x Festoon Globe
Safety Beam Compatibility 1 x 2-wire PE Beam
Network Compatible Ready for Smart Phone Control Kit
Shipping Weight 7kg
Shipping Width 433mm
Shipping Height 249mm
Shipping Length 179mm
